SPECIFICATIONS

Application: Desktop

Back I/O Ports: 1x RJ45,6 x USB 2.0,3 x Audio Jacks,PS/2

Battery Included: no

Brand Name: SOYO

Chipset: h55

Chipset Manufacturer: Intel

Choice: yes

Form Factor: Micro-ATX

High-concerned chemical: None

Max LAN Speed: 1000Mbps

Maximum Ram Capacity: 128 GB

Memory channel: Double

Number Of Memory Slots: 4

Number of M.2: 1

Number of PCI: 1

Number of PCIe x 1: 1

Number of PCIe x 16: 1

Number of SATA Ports: 2

Onboard Connectors & Header: 24-pin Main Power Connector,CPU Fan Connector(s),AAFP Connector,USB 3.0 Connector,8-pin +12V Power Connector,Speaker Connector,USB 2.0 Connector

Onboard LAN: 1x RJ45

Origin: Mainland China

PCI - E standards: PCI-E 3.0

Package: Yes

Ports: PCI-Express X1

Processor compatibility: Intel Xeon E Series

RAID Supported: Yes

SATA RAID: 0

Socket Type: LGA 2011-3

Special Features: NONE

Storage Interface Type: SATA 2,M.2 (NVMe)

Support Memory Type: DDR4 ECC

Support USB Type: USB 2.0

Supports M.2 SSD: 2280,22110

Usage Scenario: Gaming,Audio & Video,Household,Office,Design,Video Production,Video Rendering

With CPU: No

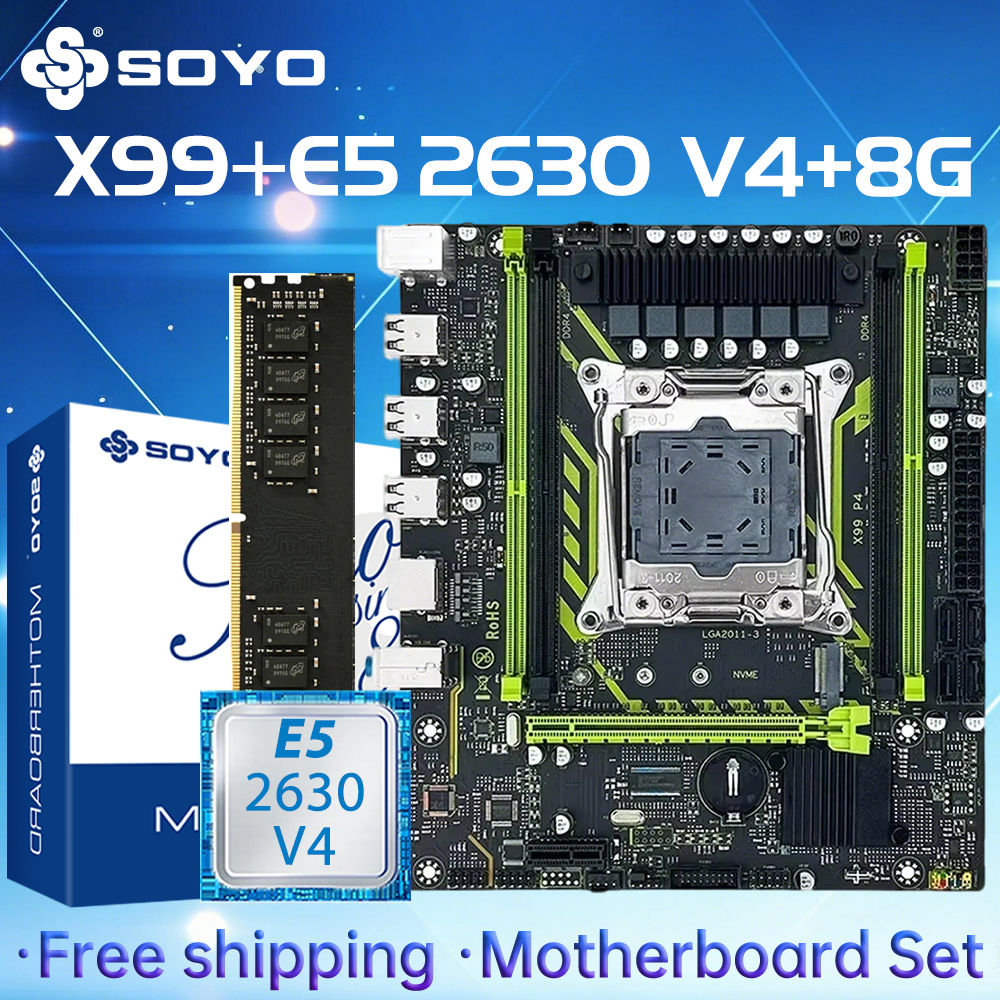

Differences Between Packages Motherboards: 1*SY-X99 D4 motherboard Motherboard+CPU: SY-X99 D4+E5 2630 V4 CPU Motherboard+CPU+RAM: SY-X99 D4+E5 2630 V4 CPU*DDR4 8G*1 Please confirm the differences between the packages before purchasing. If you mind, please do not place an order

CPU： Model number: E5 2630 V4 Processor Speed: 2.2GHz Maximum core frequency: 3.1GHz Processor Socket: LGA2011-3 Process: 14nm Memory type: DDR4 1600/1866/2133 The number of CPU cores: 10 The number of threads: 20 L3 cache size (MB): 25 MB Wattage: 85 Watts cpu will be final double tested before shipping The CPU is used , please don't buy it if you mind

Specification:

Ethernet: 1 Realtek Gigabit Ethernet card Audio: 1 audio interface (MIC-IN, LINE OUT, LINE IN) USB Port: 6 USB ports 2.0 interface; PCIE: 2 (1 PCIE X16, 1 PCIE X1) USB ports: 4 (one USB port can be connected to two USB 2.0 ports) Internal connectors SATA interface: 4 SATA interfaces ( SATA2.0) ATXPWR interface: 1 standard 1X8PIN power socket: 1 standard 1X24PIN power socket Audio: 1 2x5PIN pin Jlpc: 1 2x5pin battery M. 2 interfaces: 1 M.2 interface (supporting PCIE M. 2/SATAM. 2) :M-ATX【215 x 190】mm Note: (1) This planform needs powerful power supply. Please make sure your power supply can enough to supports this planform.(at least 500w brand power supply). (2) The battery in motherboard photos is not included and will be removed before shipping, as this battery is forbidden according to the logistics requirements.
